2.54 mm

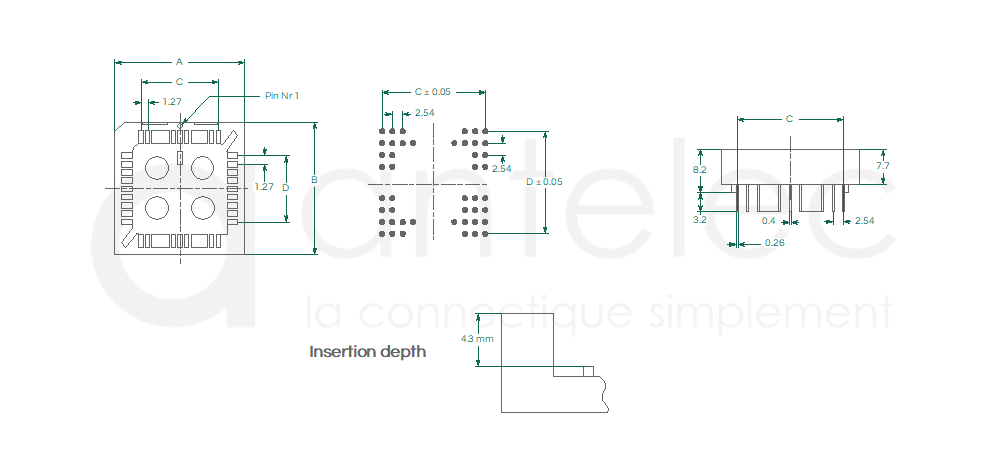

PLCC support DIP type
Technical specifications
Designed for plastic PLCC package A type, compliant with EIA & JEDEC
With insulator protection under the PLCC support to avoid risk of solder bridge
Current rating : 1.0 A
Dielectric withstanding voltage : 600 Volts AC during 1 min
Insulation resistance : > 5000 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 210°C during 5 sec
Contact : bronze
Plating : tin
Insulator : PPS, UL94V-0
With insulator protection under the PLCC support to avoid risk of solder bridge
Current rating : 1.0 A
Dielectric withstanding voltage : 600 Volts AC during 1 min
Insulation resistance : > 5000 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 210°C during 5 sec
Contact : bronze
Plating : tin
Insulator : PPS, UL94V-0
Create your part number
|
SCC
PLCC
socket |
XX
Total
number of contacts |
T
DIP
|
Product range
409
