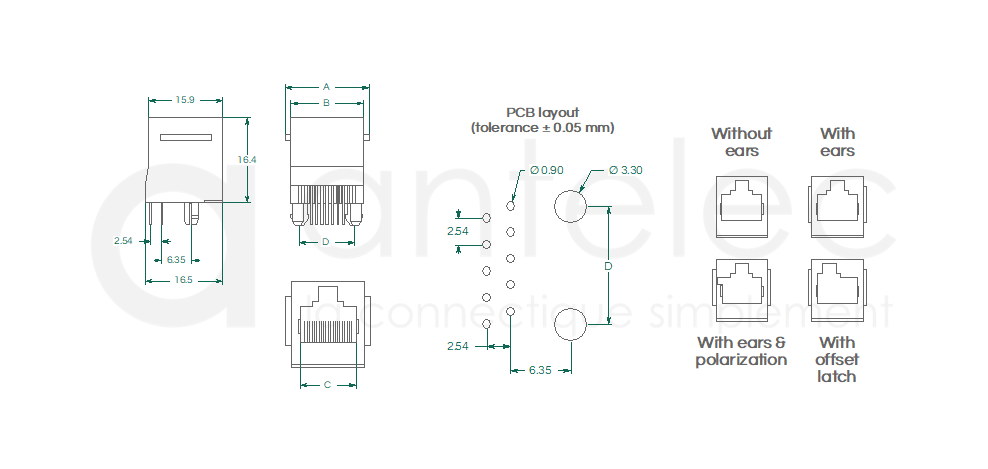

RJ plastic straight
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Contact resistance : < 20 mΩ
Insulation resistance : > 500 MΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Mating area : gold over nickel
Termination area : tin over nickel
Insulator : PBT, UL94V-0
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Contact resistance : < 20 mΩ
Insulation resistance : > 500 MΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Mating area : gold over nickel
Termination area : tin over nickel
Insulator : PBT, UL94V-0
-XX-XX-(AO ou SO ou AOP).jpg)
Create your part number
|
ARJ
Antelec
RJ |
P
Plastic
|
D
Straight
|
X/X
Total
number of positions then number of contacts |
AO
With ears
or SO for without ears or AOP for with ears and keyed offset latched |
Product range
530
