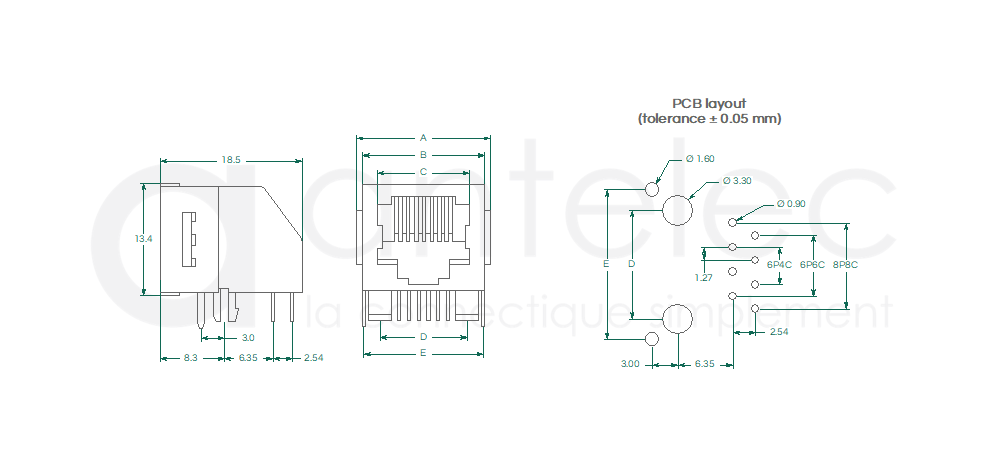

RJ shielded low profile right angle upper contact with ears
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 260°C during 5 sec
Contact : phosphor bronze
Mating area : gold over nickel
Termination area : tin over nickel
Insulator : nylon-6T, UL94V-0
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 260°C during 5 sec
Contact : phosphor bronze
Mating area : gold over nickel
Termination area : tin over nickel
Insulator : nylon-6T, UL94V-0
Create your part number
|
ARJ
Antelec
RJ |
FBR
Front
shield shrinked version |
C
Right
angle version |
X/X
Total
number of positions then number of contacts |
H
Upper
contacts |
AO
With ears
|
Product range
