1.27 mm

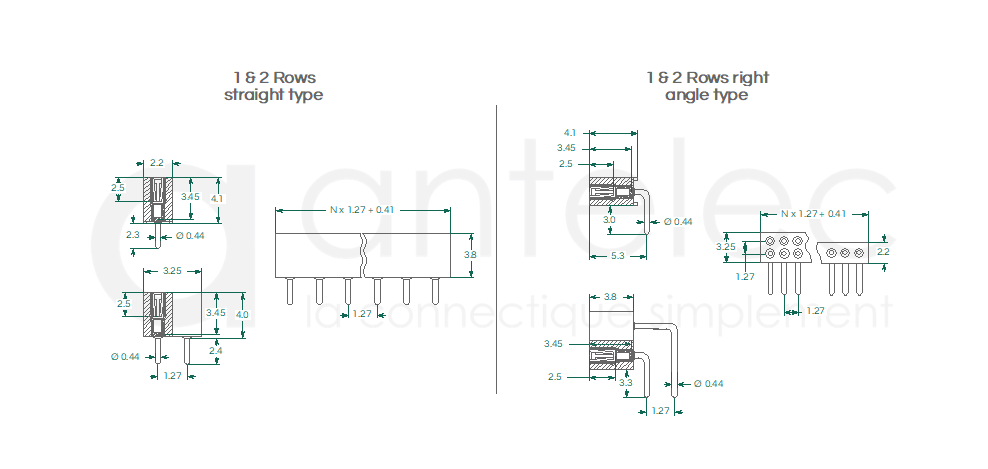

Socket connector straight & right angle type pin Ø 0.41 mm
Technical specifications
High quality machine pins
Current rating : 1.0 A
Dielectric withstanding voltage : > 500 Volts RMS
Insulation resistance : > 10000 MΩ under 500 Volts AC
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Insertion force : < 0.5 N
Extraction force : > 0.2 N
Contact : brass
Plating : tin with golden clip
Insulator : black PCT 30% GF, UL94V-0
Current rating : 1.0 A
Dielectric withstanding voltage : > 500 Volts RMS
Insulation resistance : > 10000 MΩ under 500 Volts AC
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Insertion force : < 0.5 N
Extraction force : > 0.2 N
Contact : brass
Plating : tin with golden clip
Insulator : black PCT 30% GF, UL94V-0
Mounting example(s)
-XXX-(C ou D)-BSE-127.jpg)
Create your part number
|
A1
Antelec
1 row or A2 for 2 rows |
XX
Total
number of contacts |
C
Right
angle version or D for straight version |
BSE
Tin Socket
DIP |
127
Pitch
1.27 mm |
Product range
Number of pins :
1 row : 2 to 50 pins
2 rows : 4 to 100 pins
1 row : 2 to 50 pins
2 rows : 4 to 100 pins
41
