2.00 mm
Pin header straight SMT type pin Ø 0.47 mm
Technical specifications
High quality machine pins
Current rating : 3.0 A
Dielectric withstanding voltage : > 1000 Volts RMS
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Contact : brass
Plating : gold (standard) or tin
Insulator : GF black LCP, UL94V-0
Current rating : 3.0 A
Dielectric withstanding voltage : > 1000 Volts RMS
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Contact : brass
Plating : gold (standard) or tin
Insulator : GF black LCP, UL94V-0

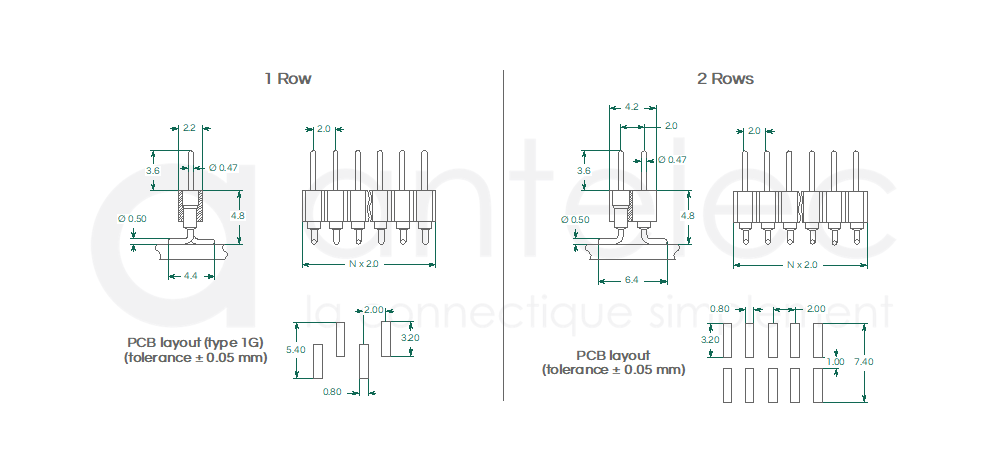

XXX-(SSD ou SSE)-CMS-200.jpg)
Create your part number
|
A1
Antelec
1 row or A2 for 2 rows |
XX
Total
number of contacts |
SSD
Gold DIP
Pin header or SSE for Tin DIP Pin header |
CMS
SMT
version |
200
Pitch
2.00 mm |
1G
Pin N°1
on left or 1D for Pin N°1 on right (only for 1 row, number of pins even) |
In Bulk or
B/A for Reel with pad or T/A for Tube with pad |
Product range
Number of pins :
1 row : 3 to 50 pins
2 rows : 4 to 100 pins
1 row : 3 to 50 pins
2 rows : 4 to 100 pins
