Product specification • A1-XX-SSE-( ) (page 127)

Connecting simply

Connectors & cables manufacturer

Board to board connectors > pitch 2.54 mm

2.54 mm

Pin header DIP type pin Ø 0.50 mm

Technical specifications

Current rating : 3.0 A
Dielectric withstanding voltage : > 1000 Volts RMS
Contact resistance : < 10 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mecanical life :
500 cycles min for versionsSSE/SSD, others : 100 cycles min
Contact : brass
Plating : gold or tin

Connect with

Female header Ø 0.4 to 0.56 mm
A(1 or 2)-XX-BSE (page 122)
A(1 or 2)-XX-(BXE or TPB) (page 123)
A(1 or 2)-XX-BSE-XX (page 125)
AGPS1-XX-(BSE or BCZ XX) (page 126)
A(1 or 2)-XX-BSE-CMS-254 (page 131)
A1-XX-C-BSE-CMS-254 (page 132)
A(1 or 2)-XX-BSE-CMS-254-V2 (page 143)

Create your part number

Antelec
1 row
or A2 for
2 rows

Total
number
of contacts

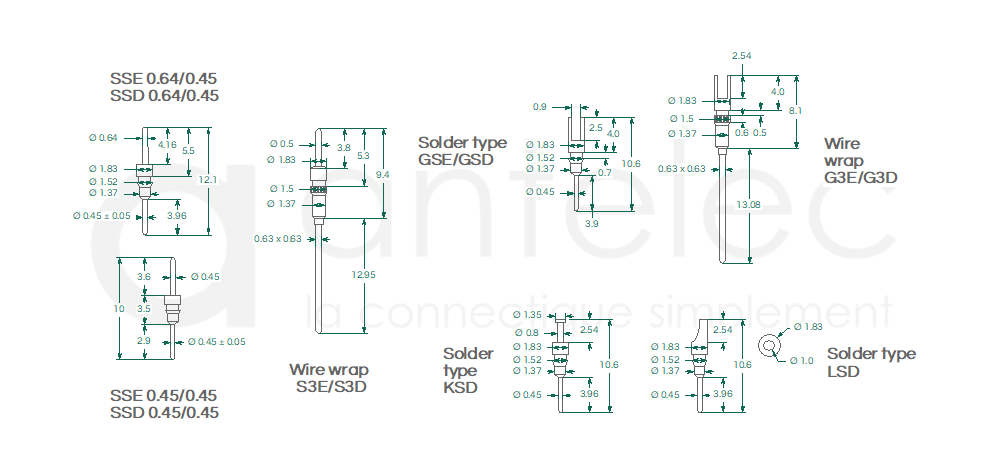

SSE

Terminals type
(or SSD,
S3D, S3E,
GSE, GSD,
G3E, G3D,
LSD, KSD)

Terminals
SSD/SSE :
empty for
standard
diameter
0.64/0.45
or
0.45/0.45
for
diameter
0.45/0.45

Product range

Number of pins :
1 row : 2 to 64 pins
2 rows : 4 to 64 pins

Standard :
1 row : 20, 32, & 64 pins
2 rows : 64 pins

127

For this item, ask for :

Specification (PDF)

Samples

Quote

Connect with

3D configurator
