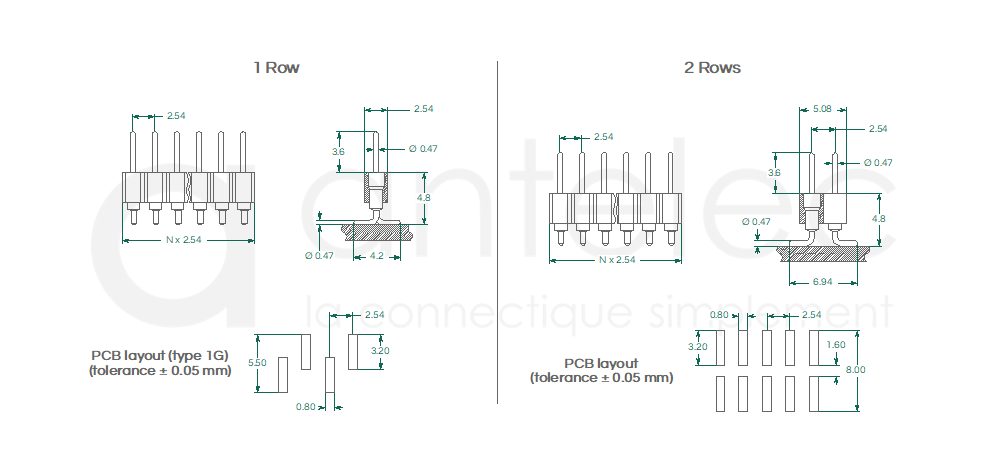

2.54 mm
Pin header straight SMT type pin Ø 0.50 mm
Technical specifications
High quality machine pins
Current rating : 3.0 A
Dielectric withstanding voltage : > 1000 Volts RMS
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Contact : brass
Plating : tin (standard)
Insulator : LCP, UL94V-0
Current rating : 3.0 A
Dielectric withstanding voltage : > 1000 Volts RMS
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Mechanical cycles : 500 cycles min
Contact : brass
Plating : tin (standard)
Insulator : LCP, UL94V-0
XX-(SSE ou SSD)-CMS-254-1G.jpg)
Create your part number
|
A1
Antelec
1 row or A2 for 2 rows |
XX
Total
number of contacts |
SSE
Standard
Tin DIP Pin header |
CMS
SMT
version |
254
Pitch
2.54 mm |
1G
Pin N°1
on left or 1D for Pin N°1 on right (only for 1 row, number of pins even) |
In Bulk or
B/A for Reel with pad or T/A for Tube with pad |
Product range
Number of pins :
1 row : 3 to 64 pins
2 rows : 4 to 72 pins
1 row : 3 to 64 pins
2 rows : 4 to 72 pins
