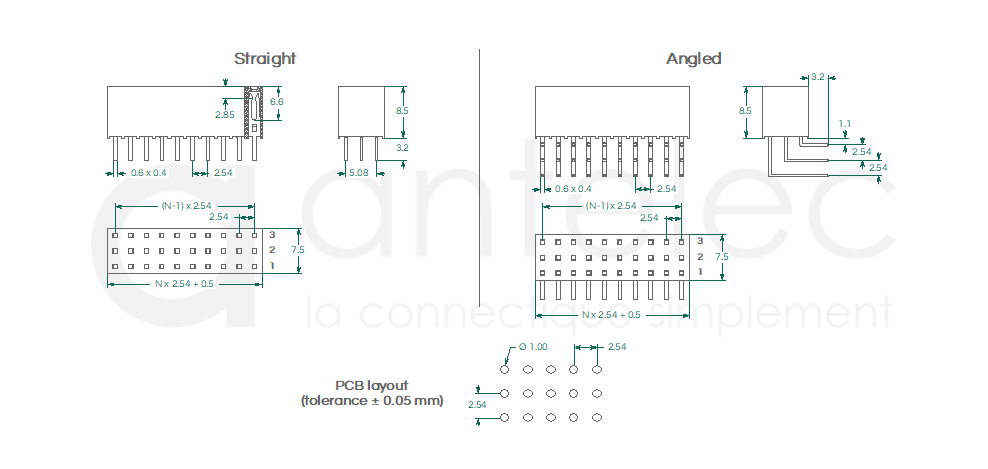

2.54 mm
Female header DIP type 3 rows for pin
0.64 mm
0.64 mm
Technical specifications
Current rating : 3.0 A
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash (standard)
Insulator : nylon-6T, UL94V-0
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash (standard)
Insulator : nylon-6T, UL94V-0
Create your part number
|
AF3C
Antelec
socket 3 rows right angle or AF3D for Antelec socket 3 rows straight |
XX
Total
number of contacts |
G
Gold
(Standard) or T/G for Selective |
Product range
Number of pins :
3 rows : 9 to 120 pins
3 rows : 9 to 120 pins
161
