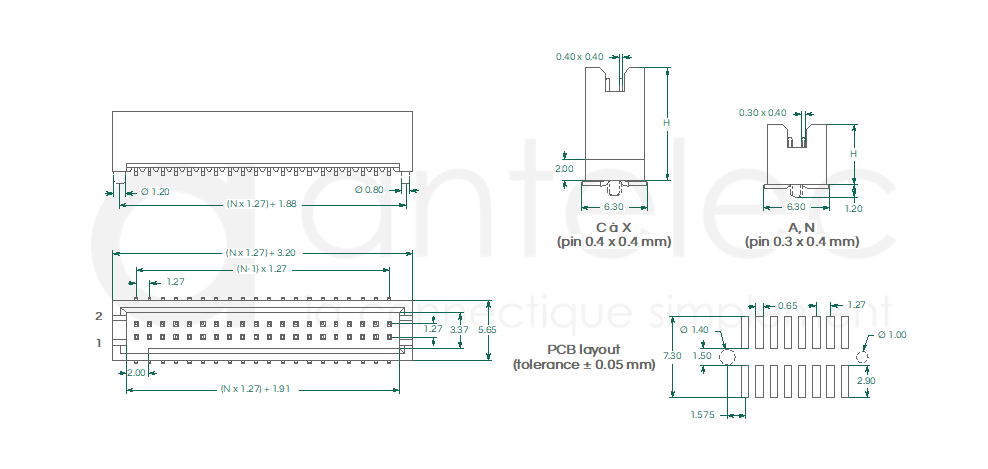

1.27 mm
Box header SMT type pin
0.30 x 0.40 mm
0.30 x 0.40 mm
Technical specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold (standard)
Insulator : nylon-6T, UL94V-0
Number of pins :
2 rows : 10 to 80 pins
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold (standard)
Insulator : nylon-6T, UL94V-0
Number of pins :
2 rows : 10 to 80 pins
.jpg)
Create your part number
|
TMHP
Elevated
box header |
S
SMT
version |
127
Pitch
1.27 mm |
XX
Total
number of contacts |
VX
Insulator
height : replace X by code (see table) |
Without
Pegs or P for with Pegs |
In Bulk or
B/A for Reel with pad or T/A for Tube with pad |
Product range
