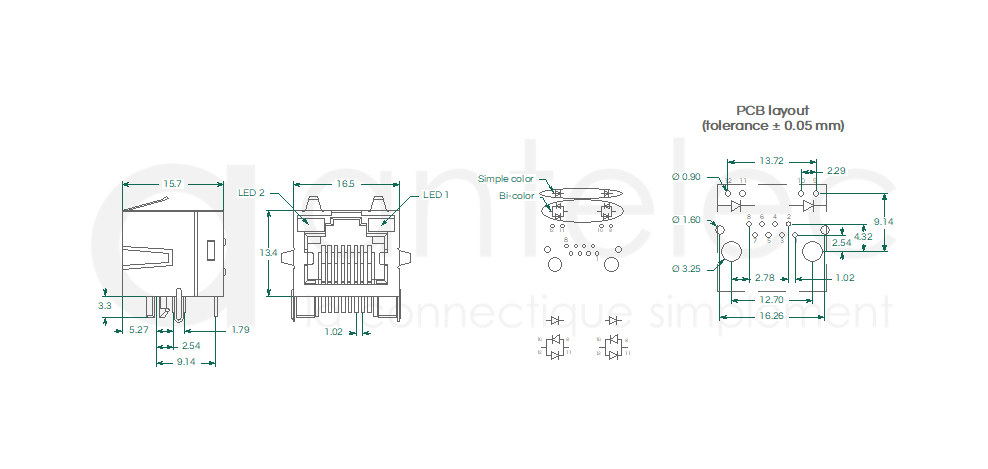

RJ shielded right angle bottom contact high speed
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Mating area : selective plating
Insulator : UL94V-0
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Mating area : selective plating
Insulator : UL94V-0
Create your part number
|
ARJ
Antelec
RJ |
B
Shielded
|
C
Right
angle version |
HV
High
Speed |
8/8
8 positions
and 8 contacts |
B
Bottom
contacts |
LEDs
colors code (see table page 568) |
556
