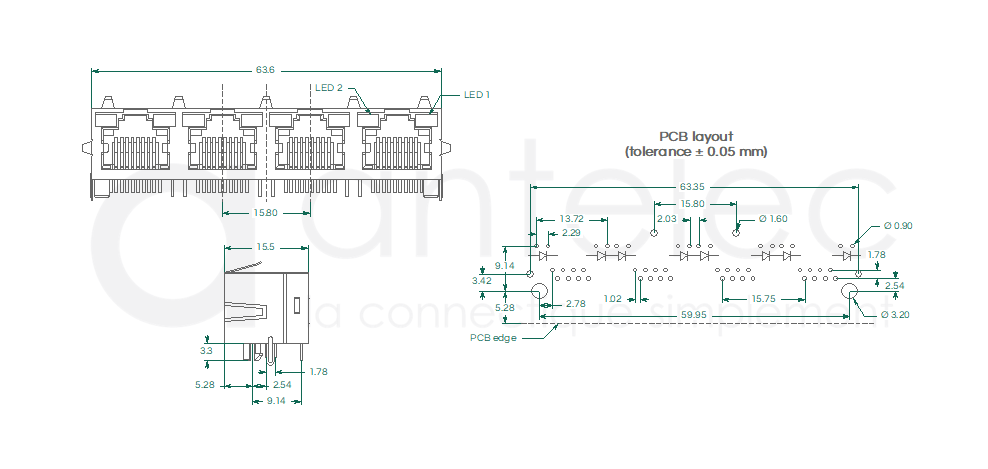

RJ 4 ports shielded right angle bottom contact high speed
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 30 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : selective gold/tin
Insulator : thermoplastic, UL94V-0
Shell : brass nickel plated
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 30 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : selective gold/tin
Insulator : thermoplastic, UL94V-0
Shell : brass nickel plated
Create your part number
|
ARJ
Antelec
RJ |
4
4 ports
|
B
Shielded
|
C
Right
angle version |
HV
High
Speed |
32/32
32 positions
and 32 contacts |
B
Bottom
contacts |
LEDs
colors code (see table page 568) |
SO
Without
ears |
561
