1.25 mm
Connector right angle ZIF for FFC/FPC
Technical specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 250 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +85°C
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : tin
Insulator : nylon-6T, UL94V-0

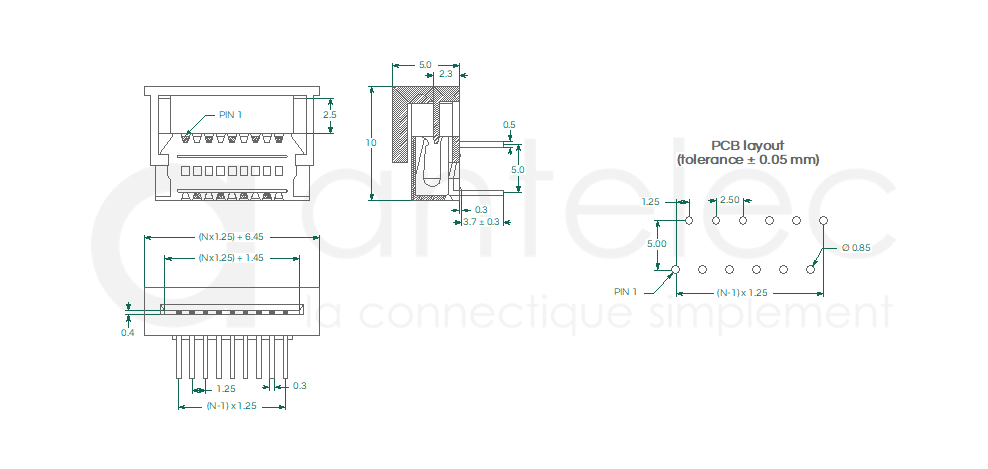

Standard recommended version (ZIF 1.25 mm right angle type)
Dielectric withstanding voltage : 250 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +85°C
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : tin
Insulator : nylon-6T, UL94V-0
Standard recommended version (ZIF 1.25 mm right angle type)
Create your part number
|
ACF
Antelec
flexible cable |
125
Pitch
1.25 mm |
XX
Total
number of contacts |
C
Right
angle version |
Product range
Number of contacts :
3 to 32 contacts
3 to 32 contacts
