4.20 mm

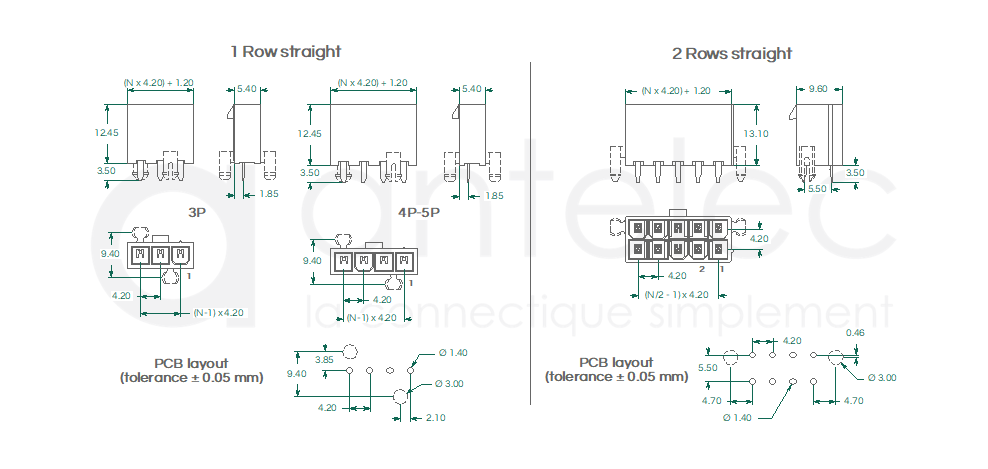

Wafer straight type version 1
Technical specifications
Current rating : 9 A AC, DC
Voltage rating : 600 Volts AC, DC
Dielectric withstanding voltage : 1500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -25°C to +80°C
Max processing temperature : 235°C during 3 sec
Contact : brass
Plating : tin (standard)
Insulator : nylon-6T, UL94V-2
Voltage rating : 600 Volts AC, DC
Dielectric withstanding voltage : 1500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -25°C to +80°C
Max processing temperature : 235°C during 3 sec
Contact : brass
Plating : tin (standard)
Insulator : nylon-6T, UL94V-2
D-420-V1-XX-T-PV-([ ] ou P).jpg)
Create your part number
|
AM1D
Antelec
pin header 1 row straight or AM2D for pin header 2 rows straight |
420
Pitch
4.20 mm |
V1
Version 1
|
XX
Total
number of contacts |
T
Tin
|
PV
Keyed
with locks |
P
With pegs
or empty for without pegs |
Product range
Number of pins :
1 row : 2 to 12 pins
2 rows : 2 to 24 pins
1 row : 2 to 12 pins
2 rows : 2 to 24 pins
