1.25 mm

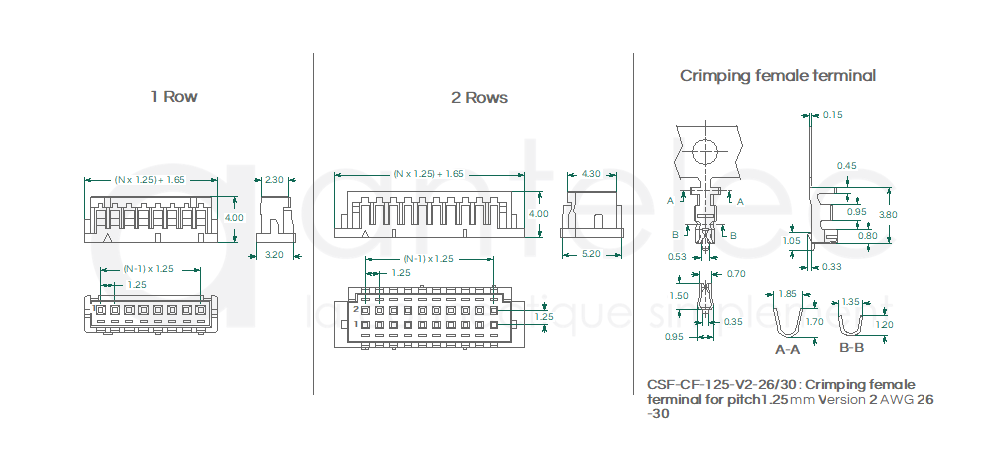

Female housing & crimping terminal version 2
Technical specifications
Current rating : 1 A AC, DC
Voltage rating : 100 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -35°C to +85°C
Contact : phosphor bronze
Plating : tin (standard)
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 0.90 mm
Voltage rating : 100 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -35°C to +85°C
Contact : phosphor bronze
Plating : tin (standard)
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 0.90 mm
Wire harness
Look at our cables catalog for your assembled wire harnesses
-PV-XX-125-V2-26-30 & CSF-CF-125-V2-26-30.jpg)
Create your part number
|
FAS
Socket
crimping type 1 row or FAD for 2 rows |
PV
Keyed
with locks |
XX
Total
number of contacts |
125
Pitch
1.25 mm |
V2
Version 2
|
26/30
Acceptable
gauge AWG 26-30 |
Product range
Number of contacts :
1 row : 2 to 15 contacts
2 rows : 10, 20, 30 or 40 contacts
1 row : 2 to 15 contacts
2 rows : 10, 20, 30 or 40 contacts
