1.25 mm

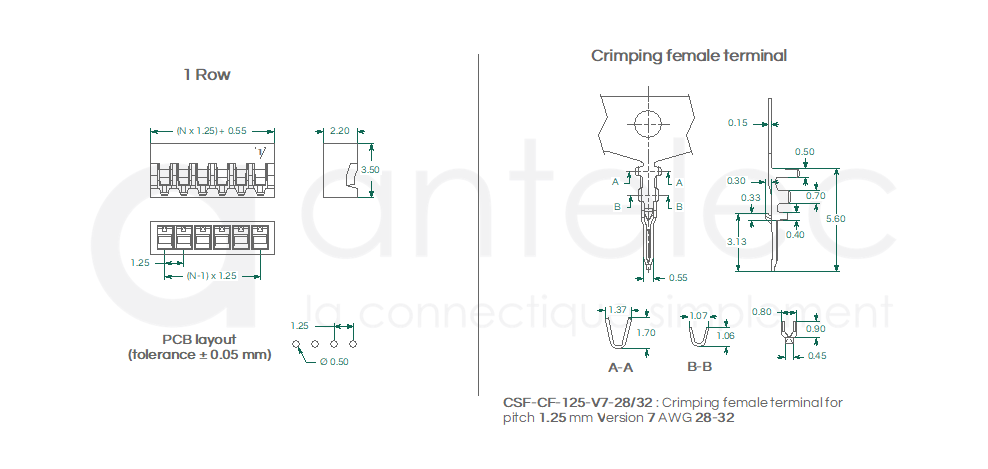

Female housing & crimping terminal version 7
Technical specifications
Current rating : 1 A AC, DC
Voltage rating : 125 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +80°C
Contact : phosphor bronze
Plating : tin
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 0.90 mm
Voltage rating : 125 Volts AC, DC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +80°C
Contact : phosphor bronze
Plating : tin
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 0.90 mm
Wire harness
Look at our cables catalog for your assembled wire harnesses
Create your part number
|
FAS
Socket
crimping type 1 row |
PV
Keyed
with locks |
XX
Total
number of contacts |
125
Pitch
1.25 mm |
V7
Version 7
|
28/32
Acceptable
gauge AWG 28-32 |
Product range
Number of contacts :
1 row : 2 to 15 contacts
1 row : 2 to 15 contacts
258
