2.54 mm
Wafer straight type with walls version 5
Technical specifications
Current rating : 3 A AC, DC
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 1500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +80°C
Max processing temperature : 235°C during 3 sec
Contact : brass
Plating : gold flash or tin
Insulator : PBT 30% GF, UL94V-0
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 1500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +80°C
Max processing temperature : 235°C during 3 sec
Contact : brass
Plating : gold flash or tin
Insulator : PBT 30% GF, UL94V-0
.jpg)
Create your part number
|
AM1D
Antelec
pin header 1 row straight |
254
Pitch
2.54 mm |
V5
Version 5
|
XX
Total
number of contacts |
G
Gold
(Standard) or T for Tin |
PVD
With bump
and walls |

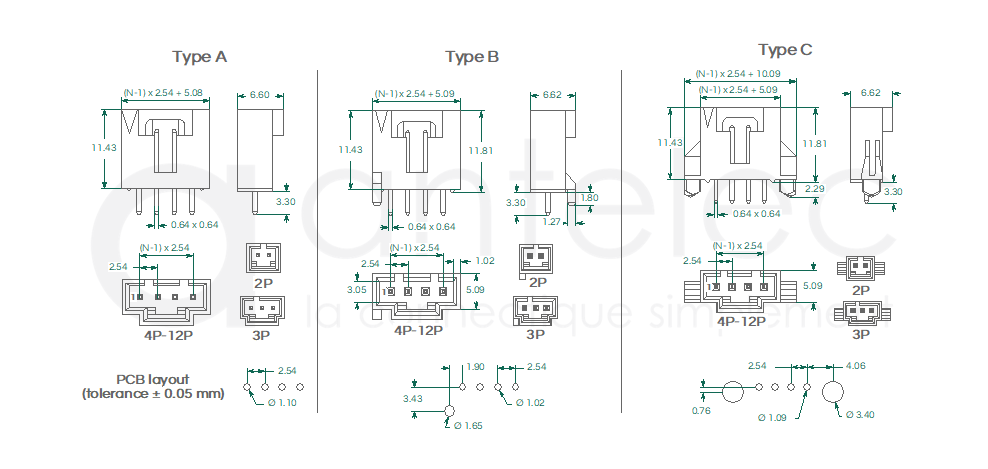

A
A type
(without pegs) or B for B type (1 peg) or C for C type (2 lateral pegs) |
Product range
Number of pins :
1 row : 2 to 12 pins
1 row : 2 to 12 pins
