Product specification • FAS-PV-XX-420-18/24 (page 349)

Connecting simply

Connectors & cables manufacturer

Wire to board connectors > pitch 4.20 mm

4.20 mm

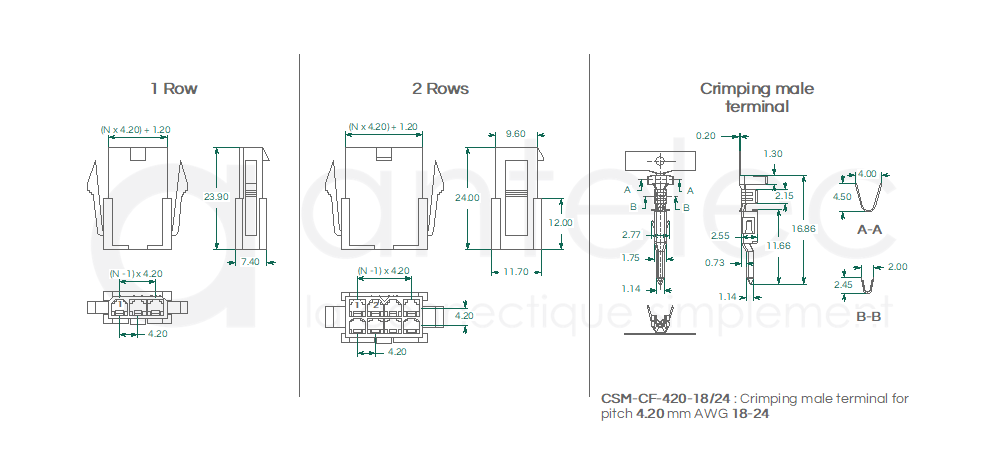

Female housing & crimping terminal

Technical specifications

Current rating : 9 A AC, DC
Voltage rating : 600 Volts AC, DC
Dielectric withstanding voltage : 1500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -25°C to +80°C
Contact : brass
Plating : tin
Insulator : nylon 66, UL94V-2
Recommended wire outer diameter : 1.30 to 2.50 mm

Wire harness

Look at our cables catalog for your assembled wire harnesses

Connect with

MA(S ou D)-PV-XX-420-16/24 (page 348)

Create your part number

FAS

Socket
crimping
type
1 row
or FAD
for 2 rows

Keyed
with
locks

Total
number
of contacts

420

Pitch
4.20 mm

18/24

Acceptable
gauge
AWG 18-24

Product range

Number of contacts :
1 row : 2 à 12 contacts
2 rows : 2 à 24 contacts

349
