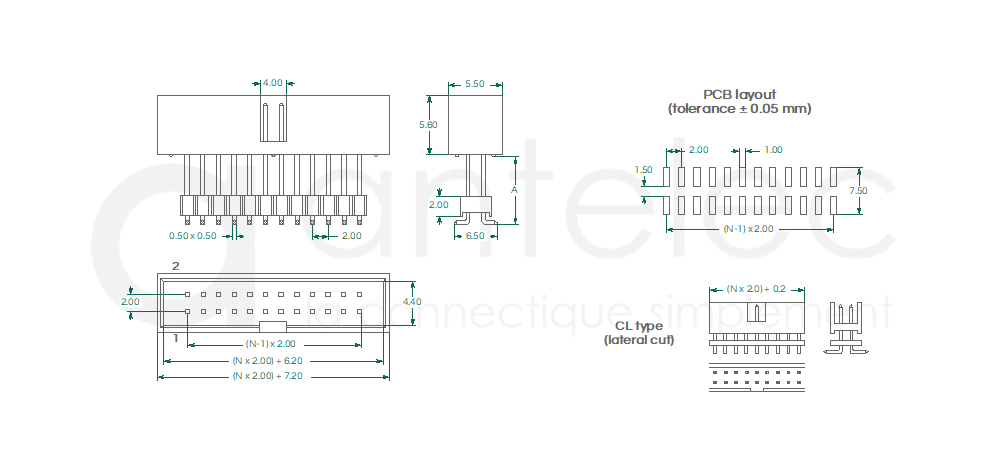

2.00 mm
Box header elevated SMT type pin
0.50 mm
0.50 mm
Technical specifications
Current rating : 2.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold (standard)
Insulator : nylon-6T, UL94V-0
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold (standard)
Insulator : nylon-6T, UL94V-0
-A.jpg)
Create your part number
|
TMBP
Box header
|
DI
Double
insulator |
S
SMT
version |
200
Pitch
2.00 mm |
XX
Total
number of contacts |
D
Gold
|
A
Dim A
(replace by value in mm) |
Empty for
standard or CL for Lateral Cut |
Product range
Number of pins :
2 rows : 6, 8, 10, 12, 14,
16, 18, 20, 24, 26, 30, 32,
34, 40, 44, 50, 60, 64,
68 pins
2 rows : 6, 8, 10, 12, 14,
16, 18, 20, 24, 26, 30, 32,
34, 40, 44, 50, 60, 64,
68 pins
