1.27 x 2.54 mm
Pin header straight type 2 rows
Technical specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash
Insulator : nylon-6T, UL94V-0
Mounting option : pin in paste

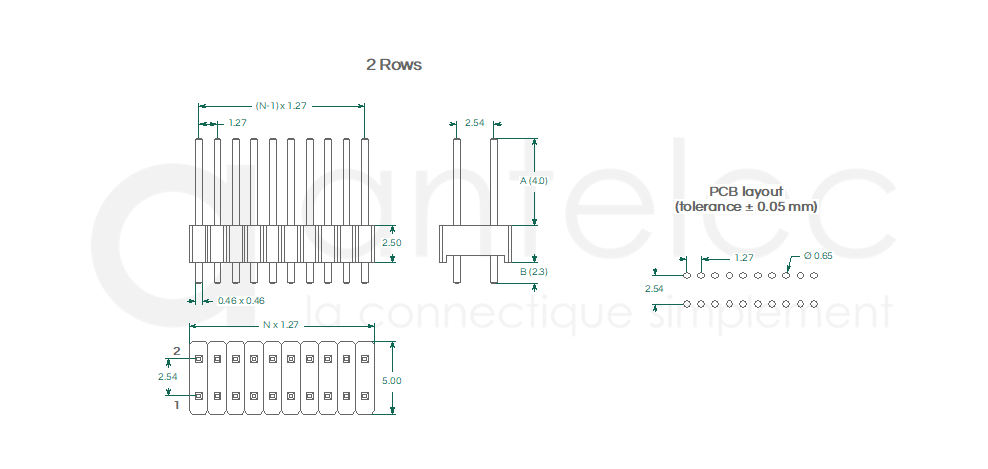

Standard : A = 4.0 mm, B = 2.3 mm
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 5000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash
Insulator : nylon-6T, UL94V-0
Mounting option : pin in paste
Standard : A = 4.0 mm, B = 2.3 mm
D-127-254-XX-A-B-G (P 489).jpg)
Create your part number
|
AM2D
Antelec
pin header 2 rows straight |
127/254
Pitch
1.27 x 2.54 mm |
XX
Total
number of contacts |
A/B
Dimensions
A and B (replace by values in mm) |
G
Gold
|
Product range
Number of pins :
2 rows : 4 to 80 pins
2 rows : 4 to 80 pins
73
