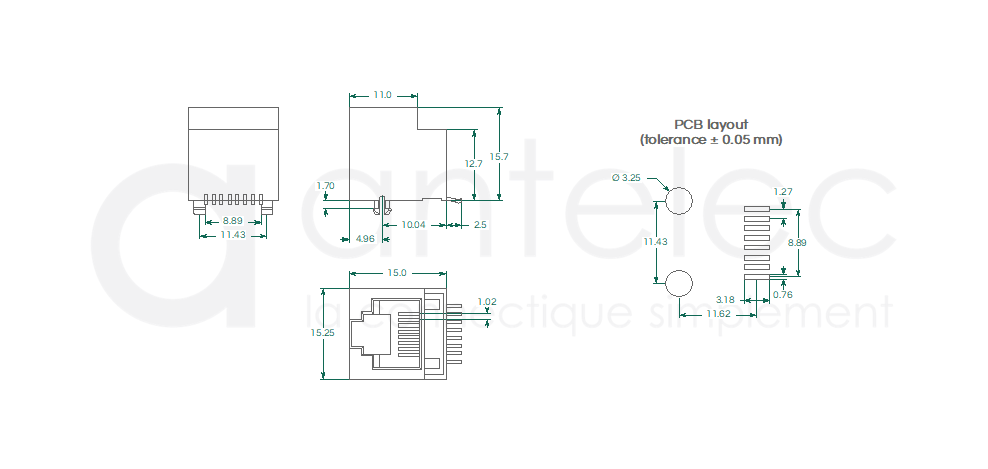

RJ plastic straight SMT without ear
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +85°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy C5210
Plating : gold over nickel
Insulator : GF polyester, UL94V-0
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +85°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy C5210
Plating : gold over nickel
Insulator : GF polyester, UL94V-0
Create your part number
|
ARJ
Antelec
RJ |
P
Plastic
|
S
SMT
version |
D
Straight
|
P
With pegs
|
8/8
8 positions
and 8 contacts |
SO
Without
ears |
In Bulk or
B/A for Reel with pad |
538
