RJ 2 ports shielded right angle upper contact
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : selective gold/tin
Insulator : thermoplastic, UL94V-0
Shell : brass nickel plated
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Plating : selective gold/tin
Insulator : thermoplastic, UL94V-0
Shell : brass nickel plated
Create your part number
|
ARJ
Antelec
RJ |
2
2 ways
|
B
Shielded
|
C
Right
angle version |
20/16
20 positions
and 16 contacts |
H
Upper
contacts |
SO
Without
ears |
A
A Type
or B or C or D (ground features) |

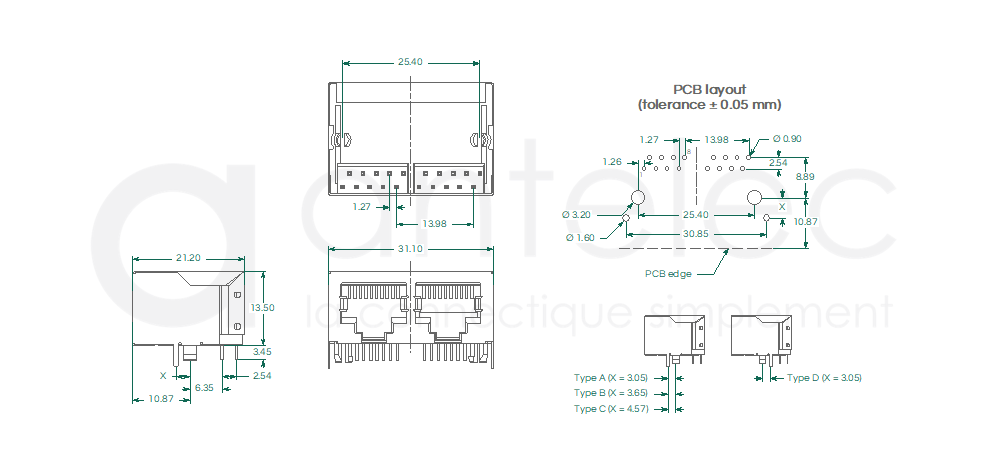

552
