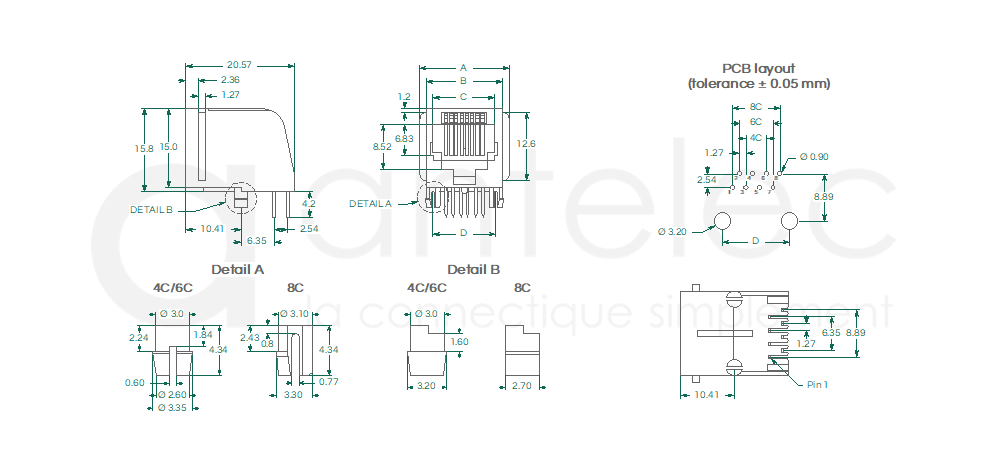

RJ plastic right angle version 10 upper contact
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Operating temperature : -55°C to +85°C
Contact : phosphor bronze
Plating : gold flash
Insulator : PBT, UL94V-0
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Operating temperature : -55°C to +85°C
Contact : phosphor bronze
Plating : gold flash
Insulator : PBT, UL94V-0
Create your part number
|
ARJ
Antelec
RJ |
P
Plastic
|
C
Right
angle version |
V10
Version 10
|
X/X
Total
number of positions then number of contacts |
H
Upper
contacts |
AO
With ears
|
Product range
536
