2.00 mm

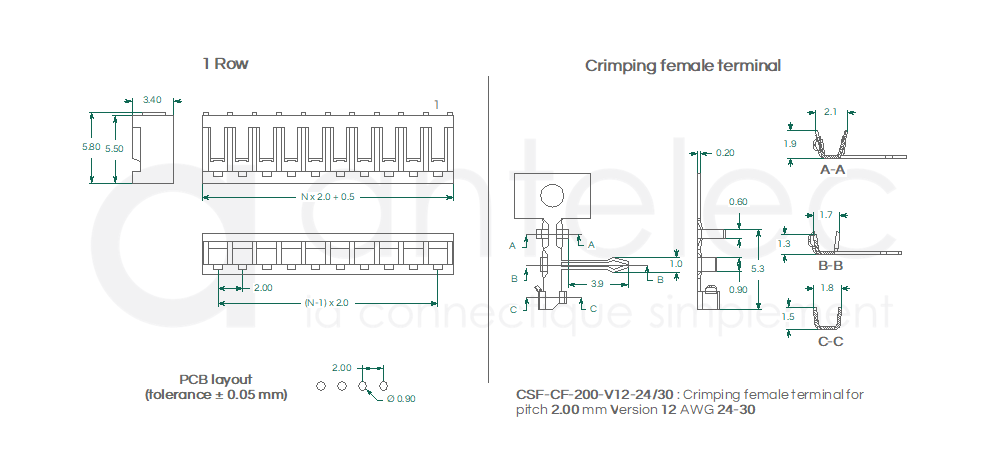

Female housing & crimping terminal version 12
Technical specifications
Current rating : 1 A AC, DC
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 800 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +85°C
Contact : phosphor bronze
Plating : tin
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 1.30 mm
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 800 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -25°C to +85°C
Contact : phosphor bronze
Plating : tin
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 0.75 to 1.30 mm
Wire harness
Look at our cables catalog for your assembled wire harnesses
Create your part number
|
FAS
Socket
crimping type 1 row |
PV
Keyed
with locks |
XX
Total
number of contacts |
200
Pitch
2.00 mm |
V12
|
24/30
Acceptable
gauge AWG 24-30 |
Product range
Number of contacts :
1 row : 2 to 12 contacts
1 row : 2 to 12 contacts
288
