0.80 mm

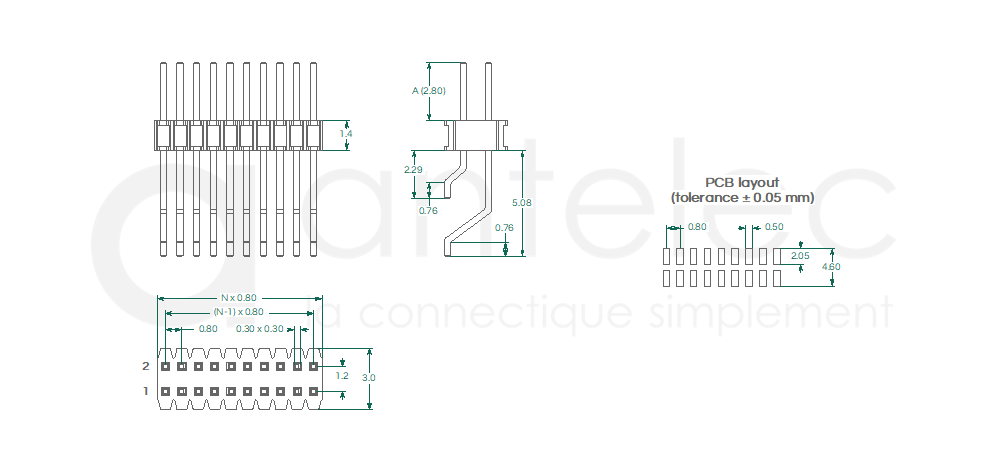

Pin header right angle SMT type 2 rows pin
0.30 mm
0.30 mm
Technical specifications
Current rating : 1.0 A
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -40°C to +105°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash
Insulator : nylon-6T, UL94V-0
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -40°C to +105°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash
Insulator : nylon-6T, UL94V-0
Create your part number
|
AM2C
Antelec
pin header 2 rows right angle |
S
SMT
version |
80
Pitch
0.80 mm |
XX
Total
number of contacts |
28
Dimension
A = 2.8 mm |
G
Gold Flash
|
In Bulk or
B/A for Reel with pad |
Product range
Number of pins :
2 rows : 4 to 80 pins
2 rows : 4 to 80 pins
