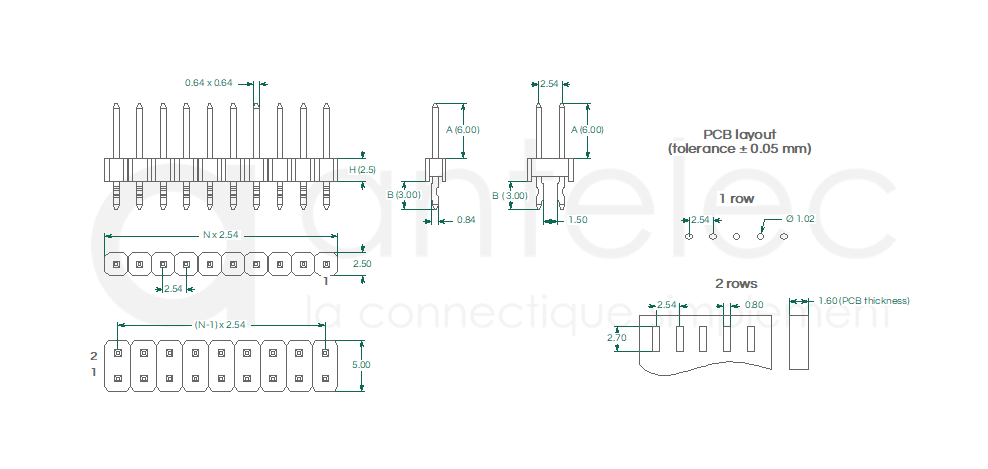

2.54 mm
Pin header straight 1 or 2 rows kink type pin
0.64 mm
0.64 mm
Technical specifications
Current rating : 3.0 A
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash or tin
Insulator : nylon-6T, UL94V-0
Mounting option : pin in paste
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 20 mΩ
Operating temperature : -55°C to +125°C
Max processing temperature : 260°C during 5 sec
Contact : copper alloy
Plating : gold flash or tin
Insulator : nylon-6T, UL94V-0
Mounting option : pin in paste
Pin lengths
Standard : A = 6.0 mm, B = 3.0 mm, H = 2.5 mm
Others dimensions : see standard pin lengths page 20
Others dimensions : see standard pin lengths page 20
0.64 mm
Create your part number
|
A60
Antelec
1 row or A61 for 2 rows |
254
Pitch
2.54 mm |
XX
Total
number of contacts |
K
Kinked
terminals |
A/B
Dimensions
A and B (replace by values in mm) |
G
Gold
(Standard) or T for Tin |
Empty for
insulator height H = 2.5 mm (standard) or H15 for H = 1.5 mm |
Product range
Number of pins :
1 row : 2 to 40 pins
2 rows : 4 to 80 pins
1 row : 2 to 40 pins
2 rows : 4 to 80 pins
