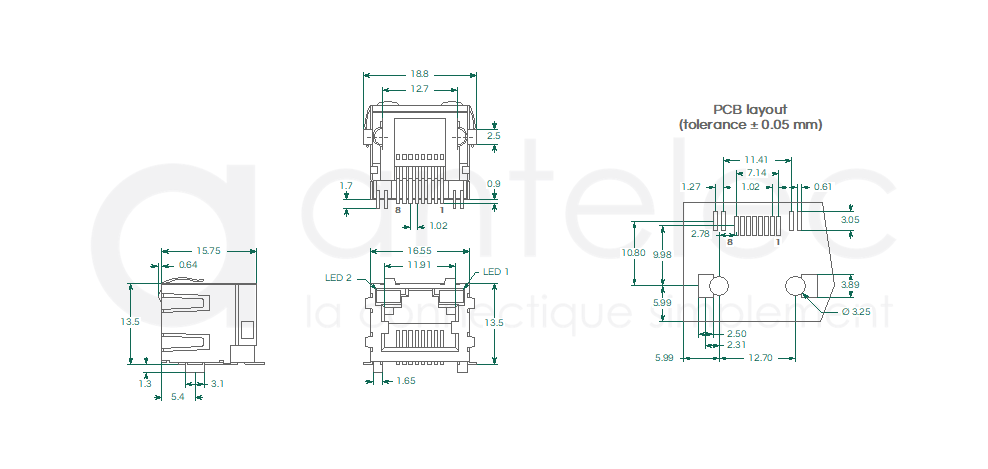

RJ shielded right angle SMT type bottom contact high speed
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 260°C during 5 sec
Contact : phosphor bronze
Plating : gold flash
Insulator : PA9T, UL94V-0
Shell : copper nickel plated
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 260°C during 5 sec
Contact : phosphor bronze
Plating : gold flash
Insulator : PA9T, UL94V-0
Shell : copper nickel plated
Create your part number
|
ARJ
Antelec
RJ |
B
Shielded
|
S
SMT
version |
C
Right
angle version |
P
With pegs
|
HV
High
Speed |
8/8
8 positions
and 8 contacts |
B
Bottom
contacts |
LEDs
colors code (see table page 568) |
In Bulk or
B/A for Reel with pad |
557
