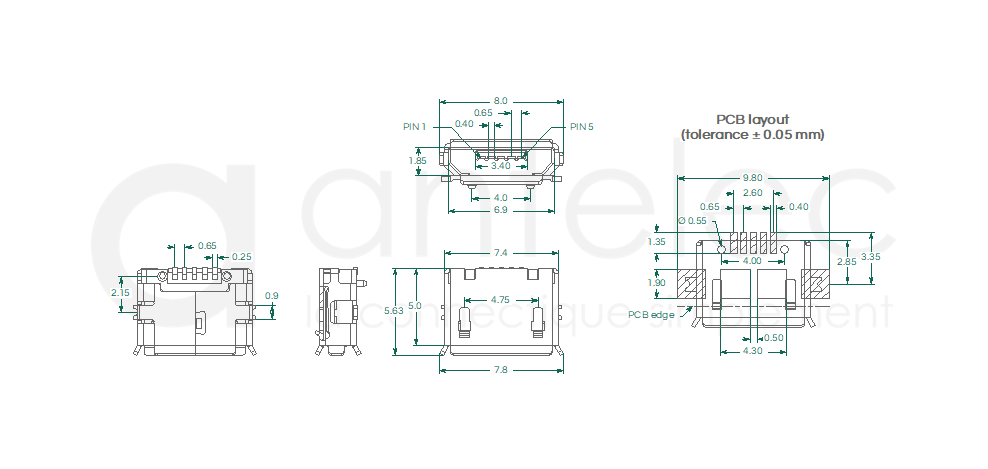

Micro USB B type female right angle version 2 SMT 5 contacts
Technical specifications
Current rating : 1.8 A (pins 1 & 5), 1 A (pins 2, 3, 4)
Dielectric withstanding voltage : 100 Volts AC during 1 mn
Insulation resistance : > 100 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -25°C to +85°C
Insertion force : < 4.0 Kg
Extraction force : > 1.0 Kg
Contact : phosphor bronze
Plating : gold
Insulator : glass reinforced thermoplastic, UL94V-0
Shell : brass nickel plated
Mecanical life : 1500 cycles
Dielectric withstanding voltage : 100 Volts AC during 1 mn
Insulation resistance : > 100 MΩ
Contact resistance : < 30 mΩ
Operating temperature : -25°C to +85°C
Insertion force : < 4.0 Kg
Extraction force : > 1.0 Kg
Contact : phosphor bronze
Plating : gold
Insulator : glass reinforced thermoplastic, UL94V-0
Shell : brass nickel plated
Mecanical life : 1500 cycles
Create your part number
|
USB
USB
|
5
5 contacts
|
MIB
Micro USB
B type |
1
1 port
|
F
Socket
|
C
Right
angle version |
CMS
SMT
version |
V2
Version 2
|
P
With pegs
|
In Bulk or
B/A for Reel with pad |
493
