2.50 mm

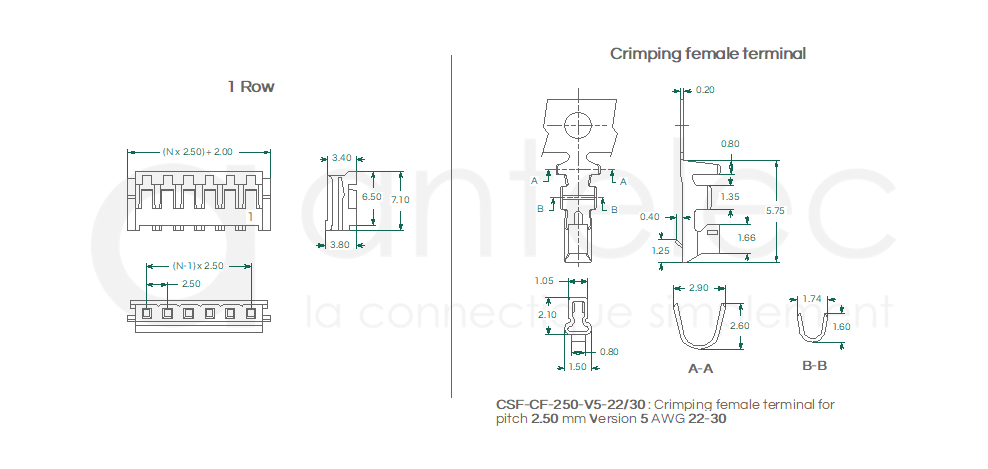

Female housing & crimping terminal version 5
Technical specifications
Current rating : 2.5 A AC, DC
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 800 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -25°C to +80°C
Contact : phosphor bronze or brass
Plating : tin (standard)
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 1.00 to 1.40 mm
Voltage rating : 250 Volts AC, DC
Dielectric withstanding voltage : 800 Volts AC during 1 mn
Insulation resistance : > 1000 MΩ
Contact resistance : < 10 mΩ
Operating temperature : -25°C to +80°C
Contact : phosphor bronze or brass
Plating : tin (standard)
Insulator : nylon 66, UL94V-0
Recommended wire outer diameter : 1.00 to 1.40 mm
Wire harness
Look at our cables catalog for your assembled wire harnesses
Create your part number
|
FAS
Socket
crimping type 1 row |
PV
Keyed
with locks |
XX
Total
number of contacts |
250
Pitch
2.50 mm |
V5
Version 5
|
22/30
Acceptable
gauge AWG 22-30 |
Product range
Number of contacts :
1 row : 2 to 15 contacts
1 row : 2 to 15 contacts
300
